Description:
Stainless steel plain weave wire mesh is the most common type of woven mesh. The warp and weft wires have the same diameter and interlock perpendicularly at 90° angles, forming a square opening. The mesh structure is uniform, with a smooth and flat surface, making it ideal for high-precision filtration applications.

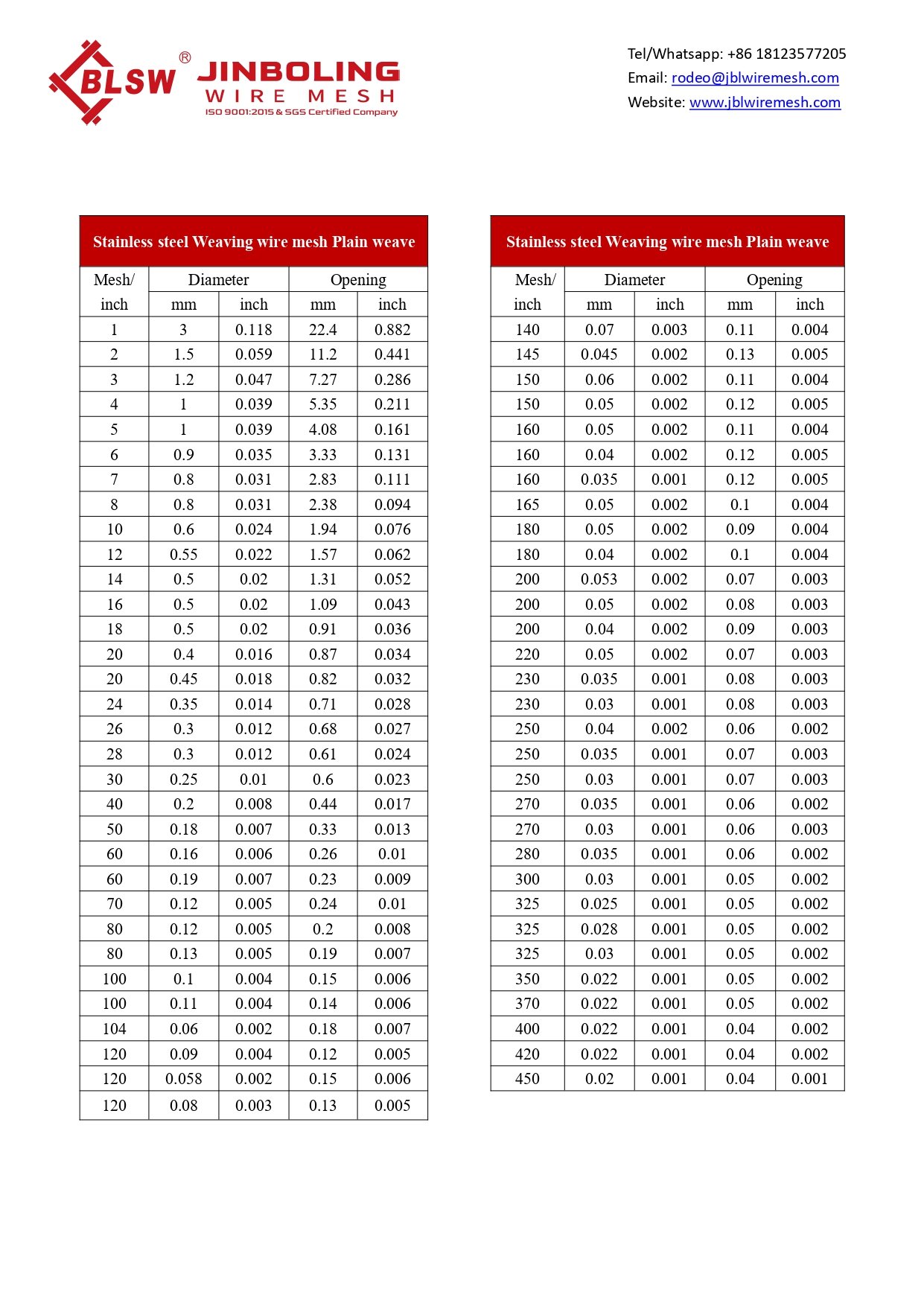

SPECIFICATIONS

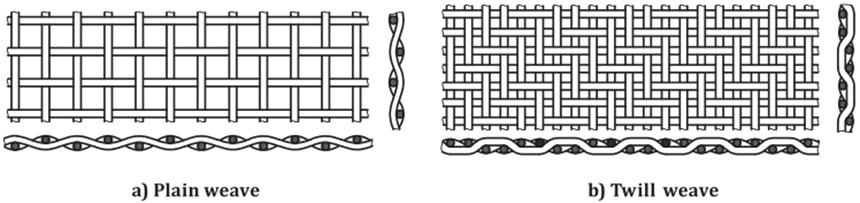

Plain Weave:
- Weaving Method: Each warp (vertical) wire alternately passes over and under each weft (horizontal) wire, creating a simple, crisscross structure.
- Appearance: The pattern is regular and uniform, with square-shaped openings.
- Advantages: It offers a stable structure with good strength, is cost-effective, and is suitable for a wide range of applications.
- Common Applications: Filtration, sieving, general industrial and construction uses.
Applications:
- Ceramic slurry & powder filtration
- Petrochemical & chemical industries
- Gas & liquid filtration
- Precision pressure filters & fuel filtration
- Vacuum filters & filter elements
- Aerospace, refining, pharmaceuticals, sugar processing, synthetic fibers, rubber & tire manufacturing, metallurgy, food processing, sanitary & research industries
